Introduction
The goal of the project is to build a limited scale, but functional search engine. The search engine should be able to provide a list of relevant documents when a query is given, just like any commercial search engine would do. It is in a limited scale that it is required to collect a limited number of documents (e.g., in the order of a few hundreds to a few thousands.) The more your search engine can collect, the better it is.
This is a multi-phase team project. It will start from the beginning of the course and last through the course. The detailed scope of the project, the team organization, technical information, and other details will be given as the course progresses. An overview and the first part of the project is given here.
Components of a Search Engine
A search engine consists of a collection of software components that work together to accomplish the task of collecting, analyzing a large number of documents over the web and giving the user a list of relevant documents and URLs when a query is issued to the search engine.
While the details vary, major components of a minimal search engine include the following.
- A user interface which takes the user input, passes the query to the search engine, displays the results sent back by the engine;
- A crawler which visits the web and collects information about all the documents it encountered from the web;
- An indexer which indexes each of the pages collected from the web by the crawler and establishes links between keywords and documents that contain these keywords;
- A ranker/retriever which ranks the documents for a given query according to certain measures and retrieves the top relevant documents for the user;
- A file/database operation component which takes care of network and file operations.

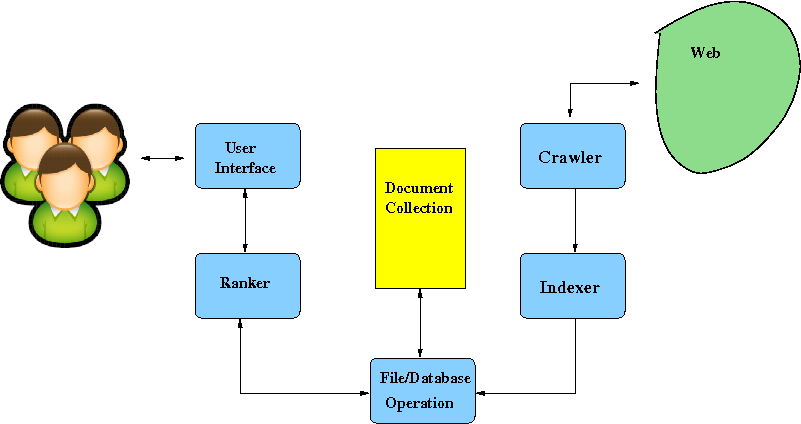

Figure 1: Architecture of a Simple Search Engine
Figure 1 illustrates the relation among different components in a typical search engine. These components can be roughly divided into two major parts, somewhat independent of each other, as can be seen from the figure. One is on the left side of the document collection, which answers user's queries. The other is on the right side of the document collection, which collects information from the web so the URLs related to the user queries can be retrieved. A crawler goes around the web to read web pages and to extract information from each web page it reads. The information is then sent to an indexer. The indexer builds an indexing system using the collected information and creates the links between keywords and the documents that contain these keywords. The result is typically saved into a file or a collection of files. When a user issues a query the document list is searched and a collection of relevant documents is generated. The ranker is responsible to rank these documents according to certain algorithms and measures. The top ranked documents are returned to the user for review. It is possible for the user at this point to review the documents and send feedback to the search engine. The ranker may take these feedback into account and re-select or re-rank the documents for the user to view.
Your Work in Phase One and Some Technical Details
Your phase one work is to implement a basic version of the interface and a web server program that can retrieve web pages from local file system for the user. At this point, a basic set of framework is needed. As the project progresses, some of these components will be further enhanced. The interface part is responsible for the following main tasks.
- Display a main search engine page (you should design this page carefully, it will be the gateway of your search engine to the world);
- Read the user inputs from the browser;
- Display the page generated by the web server based on user input.
The web server program takes care of the operations of files and network. It does the following.
- Maintain the communication between the browser and the web server which eventually evolves into a search engine;
- Read and parse the inputs from the browser;
- Generate results based on the user input and send the results to the browser.
There are some Java code examples in the directory for this part of the project. Students who use C++ may find a similar example in C in the directory. You may certainly implement the project in other programming language. Please make sure to let me know if you use anything other than Java, C/C++, or Python. Before you design and develop your own program, please do the following.
- Download these program examples and save them into a directory of your own, e.g., WebServer.
- Compile the programs by
javac EasyWebServer.java
- Run the program by
java EasyWebServer port#
where the
port#
is an integer of your choice. There are two restrictions for this number. It has to be greater than 1024. Port numbers below 1024 are reserved for system applications (for example, email server at port 25, web server at 80, and ftp server at 21). The second restriction is that the port number has to be unique. No two applications can be running at the same port on the same machine.- Now that your simple web server is running, point your favorite web browser at
http://server:port/
to see the results generated by the server, whereserver
is the name of the computer where your EasyWebServer is running, e.g.,localhost
and the port is the port number you chose to run the server in the previous step. For example, if the web server is running onlocalhost
at port 9999, then you should point your Web browser at
http://localhost:9999/
- Try a few different paths on the web server such as
http://localhost:9999/sample.html
http://localhost:9999/search- Then read the programs and make sure you understand what the program is doing.
Let's discuss some technical details as we walk through an example. Assume the search engine is running at host localhost at port 9999. We have issued the URL in our browser as
http://localhost:9999/search
An HTML form will be displayed in the browser as the result. We typed "123" in the first input box and "abc" in the second input box and then we clicked on the button "Submit." Let's now exam what happens between the browser and the server.
When a web browser contacts a web server, it sends, among other things, a command of the following form to the server
get /path http/1.0 \r\n\r\n
This means the browser is requesting (get) a page specified by /path and the protocol that the browser is using is HTTP 1.0. It is required to have two consecutive new lines to end the command, each of which consists of a new-line character and a carriage-return character.
In our example, the command sent to the server from the browser is
get /search http/1.0 \r\n\r\n
This resulted in the form to be displayed to the browser's screen.
The server has to parse this command to understand what the browser wants to do. A get command indicates that the browser is requesting some web page(s). A post command indicates that the browser is sending some information to the server, for example, a search query.
The browser also sends the length of the input to the server when it is requesting to post a form. This length tells the server how many bytes of information the browser is sending to the server as contents. The server is then expecting to read the number of bytes specified by the content length.
In our example, when we fill in the form and click the "Submit" button, the browser is sending a "post" request to the search engine. The content of the form is sent to the server as the actual content after the header information.
The following is a sample string the browser sends to the server when it is requesting a regular web page. When you run the sample program, you will see a message similar to this echoed on your server screen.
GET / HTTP/1.0
Connection: Keep-Alive
User-Agent: Mozilla/4.78 [en] (X11; U; SunOS 5.8 sun4u)
Host: polaris:9999
Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, image/png, */*
Accept-Encoding: gzip
Accept-Language: en
Accept-Charset: iso-8859-1,*,utf-8
The following is a sample string the browser sends to the server when it is posting a form to the server. When you run the sample program, you will see this echoed on your server screen.
POST /form HTTP/1.0
Referrer: http://polaris:9999/search
Connection: Keep-Alive
User-Agent: Mozilla/4.78 [en] (X11; U; SunOS 5.8 sun4u)
Host: polaris:9999
Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, image/png, */*
Accept-Encoding: gzip
Accept-Language: en
Accept-Charset: iso-8859-1,*,utf-8
Content-type: application/x-www-form-urlencoded
Content-length: 44
Note that the last line indicates that the content length is 44 characters. In this case, after the header part (in the above display) the browser is sending a form containing data to the server in the following format.
FirstInput=123&SecondInput=abc&Submit=Submit
which is exactly 44 characters. This string represents the form that is sent from the browser. The content length (44) and the content string depends on your input to the form. In our example, we typed "123" in the first input box and “abc” in the second input box. The content string is formed by the browser in the format of a sequence of name/value pairs. The name and value in a pair is separated by an equal sign "=" and the pairs are separated by an ampersand sign "&". In our example, FirstINput, SecondInput, and Submit are the names of the form entries (read
form.html
to see where they are specified) and 123, abc, and Submit are the values corresponding to these names.Once the server parses the input form string, it captures all the input values. The server can then act accordingly. If this is a search engine, the server can pass this value as the query string to the ranker/retriever component to retrieve relevant documents. In this phase of the project, you may just echo the query term to indicate that the server understands the query. The actual retrieval operation will be implemented in a later phase.
What to Hand In
Your team needs to hand in the following in the order given.
- A team report for phase one of the project with a cover page. Name this file as phase1-report-teamname.docx, where teamname should be your team name. If your file is PDF, use the .pdf extension. The report shouldn't be too long, maybe two to three pages. The report should include the following as a minimum.
- The name of your team (should be same as your search engine);
- The name of each team member;
- A description of the roles of each team member and the contributions of each member;
- A summary of the working process, e.g., what the team started with, what the team has accomplished, any problems encountered, how the team solved them, any thoughts on the project, among others.
- Team meeting minutes during this phase of the work.
- Source code for the programs and HTML pages.
- Snapshots of sample runs from a Web browser.
- Follow the instructions in submissions.html to submit your work.
