Project 2: Maze

Please refer to the project page for the due dates of the project.

1 Academic Integrity

The project falls under the Homework and Projects in the course collaboration policy. Make sure you follow these policies.

2 Objective

The purpose of this assignment is to give you an opportunity to practice stacks and recursion and understand better the relation between the two.

2 Introduction

Do you know how to find your way out through a maze? After you write this program, you will never be lost again in a maze!

Assume that a maze is a rectangular array of squares, some of which are blocked, others are empty (we call them a passage). All squares at the boundary of the maze that are not blocked are possible exits, if there is a way leading to it from the entrance point. (Note that the entrance point may be any passage square of the maze, not necessarily one on the boundary). A path from the entrance to an exit can consist of only passage squares that are next to each other. There may be many exits for a given maze and the entrance point. A mouse (or any other creature with some intelligence) chooses an entrance among the squares that are passages and it will try to find all possible ways leading to an exit from the given entrance.

For example, if a maze is given in Figure 1, the *s represent the squares that are blocked and the spaces represent the possible passage. Starting at location (5, 6), one will find the three possible paths to the exits of (0, 3), (11, 1), and (11, 1) through a different path. The squares on the paths are represented by the symbol !. There are four copies of the maze in Figure 1. The upper left one is the original maze; the rest three show three different paths from the starting to the three exits that can be reached from the starting location.

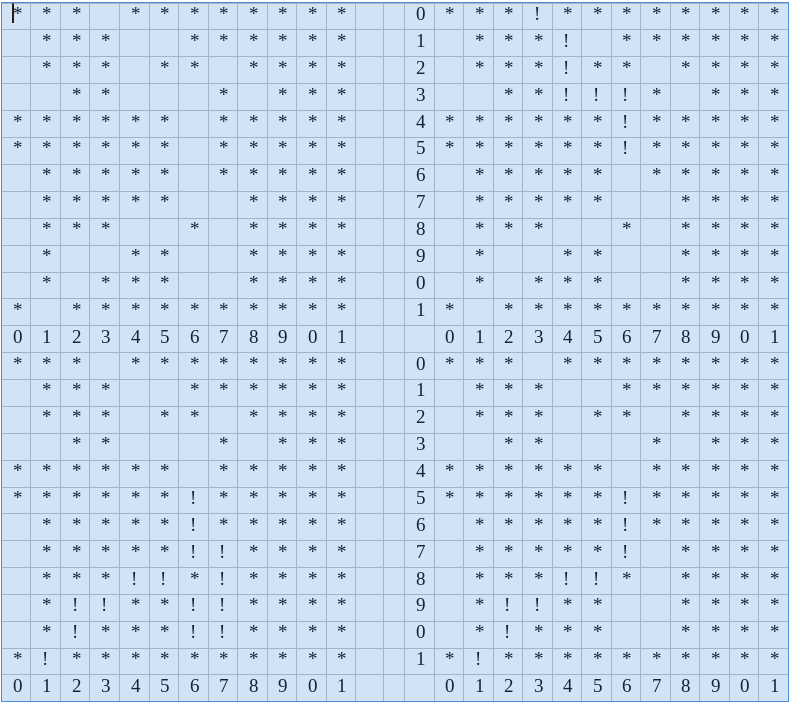

Figure 1: Four paths starting out at (5, 6)

The basic rules of moving around a maze are very simple.

1. The entrance location and the exit locations can be anywhere in the maze. The example in Figure 1 limits the exit locations on the edges, though.
2. The mouse starts at the location within the maze specified as the entrance point.
3. The mouse can move through any open space (possible passage) toward the exits, which are located at the four edges of the maze (or as specified by a pair of coordinates) and the squares at the exits have to be possible passage themselves.
4. In our project, the mouse can only move in four directions, up, down, left, and right. The mouse cannot move diagonally, although permitting it to do so will not increase the difficult level of the algorithm too much. (The figure shown above permits the mouse to move in all eight directions.)
5. In general, the mouse should be able to find all possible paths, not just one. But to simplify our problem, especially with the stack solution, our mouse is specified just to find one possible path in this project.

How does it work? Starting with the current mouse location, e.g., the entrance point, the mouse will look for a possible move in all four directions if the current square is not an exit. If one of the neighboring squares is a possible passage and it has not been visited before, the mouse will move to that square by marking the square as visited as a part of a path. The algorithm continues from there. As one can see, this can be formulated as a recursive solution very nicely. One can also solve the problem using stacks without recursion, though there is a very close relation between stack and recursion solution. We will explore stack solution in the second phase of the project.

3 Your Tasks

The project you are to complete is to design and implement a set of classes that work together to solve the maze problem. You will solve this problem in two different ways, one is using recursion, and the other is using stacks.

1. Your program generates (or reads from a text file) a maze, display it on the screen. This should depend on the user choice. The user can either indicate to use a randomly generated maze or the user prefers the use of an existing maze (read the maze from a text file).
2. The user is able to specify a particular entrance point and a particular exit point after seeing the maze.
3. Your program then takes this pair of input and exit coordinates and invokes the necessary methods in various objects to find a path between the entrance point and the exit point.
4. Your program then displays all these paths to the user on the screen.
1. When using stack, print the single path. You do not need to erase other traces that are left on the maze as a part of the previous exploration.
2. When using recursion, print all possible paths between the entrance and exit point. Because of the nature of recursion, your program will print one maze after another if there is more than one path between the entrance and exit point; each of the mazes will display one path, similar to Figure 1.

4 Detailed instructions

Create a folder for the project. Copy all the files from the following Linux directory.

cp ~csci204/student-projects/p2/* <your-folder>

Or use the scp to copy remotely as you like.

scp abc123@linuxremote:~csci204/student-projects/p2/* <your-folder>

In that folder, you should see a collection of six files, three test maze data files, maze1.dat, maze2.dat, and maze3.dat, and three Python program files, maze.py, pyliststack.py, and testmouse.py. The file maze.py contains an incomplete implementation of a maze class and the file pyliststack.py contains an implementation of stack. You may implement your own stack, e.g., use the work you do in the stack lab. The key requirement is that you have to solve the problem using two different, though highly related approaches, stack and recursion. The file testmouse.py contains the drive program which you can use to run the tests.

Your first task is to complete the maze class. Take a look at the maze class file. We have implemented a method to generate a random maze. You need to complete all other methods that are specified in the file. If your solution requires more methods from the maze class, please feel free to add them. The basic logic (take a look at testmouse.py) is that when the program starts from testmouse.py, the user is asked to enter a file name representing the maze to be solved. If the user enters something that is not a valid file name, your program (the maze class) generates a random maze. After displaying the maze on the screen, the user can then specify an entrance and an exit point so your program can try to solve the problem.

4.1 Algorithm to find a maze path using recursion

The algorithm to find a maze path using recursion is very similar to that of using a stack. The only difference is that in recursion, we don't need an explicit while loop that is typically required for a stack solutin. We simply explore the four neighbors recursively! The exact algorithm is left for students to figure out. One key element is that the algorithm has to make a local copy of the maze before exploring the next level because the mouse needs a current version of the maze in order to decide which direction(s) to move. To save a local copy of the maze, you need to do two things.

1. Pass the maze as a parameter to the recursive call, among other parameters such as the current position coordinates and the exit coordinates.
2. At the beginning of the solving method, make a local copy of the maze that is passed in as a parameter by using Python's deepcopy() method in the

   copy

   package. The copy package allows one to make various types of copy. The method deepcopy() creates a separate object with identical attributes as those in the original copy. The copy() method makes a shallow copy with a reference to the original object only.

   import copy ... local_copy = copy.deepcopy( maze )

   Note: The logic of recursion should be implemented in a Python file that you can import into the testmouse.py program. If you examine the current testmouse.py file, you will find that the testmouse.py file imports the Mouse class from a file named mouserecursion.py for a recursive solution. Later on when you implement the solution using stack, you should consider that the file name to be mousestack.py. You can certainly use other file name to contain the implementation of the Mouse class, you just have to change the import statement accordingly.

   4.2 Algorithm to find a maze path using a stack

   The basic idea of using a stack to find a path in a maze is described in the following algorithm. (See Dr. Havills website: http://personal.denison.edu/~havill/algorithmics/algs/maze.pdf. Dr. Havill is an alumnus of Bucknell's Computer Science Department!)

   Algorithm Maze (maze, start) # Find the goal in a maze using a stack (depth first search) create an empty stack named S push start onto S while S is not empty do current = pop from S if current is the goal then output Success! print the maze with the path marked break the loop else if current is not a wall and current is not marked as visited # Explore four neighbors mark current as visited mark the current as a part of the path on the maze if the right neighbor is valid to visit push onto S the point to the right of current if the left neighbor is valid to visit push onto S the point to the left of current if the neighbor above is valid to visit push onto S the point above current if the neighbor below is valid to visit push onto S the point below current end if end while

   Figure 2: Algorithm for a stack solution

   As one can see, the stack solution marks the path while exploring the maze. When an exit is found, in addition to the correct path that has been marked, other cells on the maze may also have been marked as a possible path with unsuccessful exploration. (See a demo late in this description.) This is fine. Completely removing the unsuccessful trails involves saving a copy of local maze on a stack each time a cell is explored. We will not attempt to resolve this problem here in this project.

   Name the file containing your Mouse class using stack to be something like mousestack.py

   4.3 Revising the drive program testmouse.py

   You need to run the program through the drive program testmouse.py. Currently testmouse.py will ask the user to enter a file name. If the file name is not none, the program will read a maze file. You are asked to revise this part of the program so that the program will simply try to open a file with the name that the user types in, if the opening of the file is failed, an exception is raised such that your program will use the random number generator to generate a maze file (this part of the code is already given in the maze class.)

   4.4 Sample output

   The following is a sample output running the maze program using maze1.dat as the input. You can compare your output with it.

   This result is from the stack solution. Notice that it only finds and prints one path while two paths exist.



   Figure 3:Sample result from a stack solution

   For the same maze, if you use a recursive solution, multiple paths will be printed, each of which occupies a maze. For this particular maze (maze1.dat), in addition to the path found in Figure 3, another path between (2, 3) and (11, 1) is as follows.

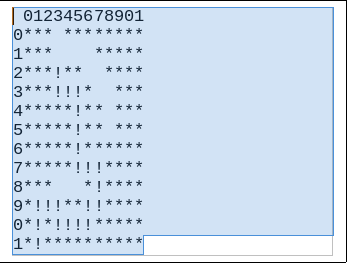

   Figure 4:Additional result from a recursive solution

   Note that in the above example of the stack solution, there is no extra mark left on the maze except the path. In other cases, it is possible that extra marks left on the maze which are not part of the solution.

   5 Submission

   Make sure you submit all your files in your folder to Moodle with two separate submissions, one for each phase. A readme-xxx.txt file is required that contains the output of your test runs, where "xxx" indicates either the result of a stack solution, or that of a recursive solution, (e.g., "readme-stack.txt" or "readme-recursion.txt." In your readme file, put your name and the assignment number at the top, mark clearly the name of the input file (e.g., maze1.dat) and the output associated with it. You are asked to include all three test cases given in the assignment, each of which should be tested against both a stack solution and a recursive solution.

   We ask you to submit the two phases separately with each submission containing the program and a proper readme file. Make sure you name your solution program separately as well, e.g., mousestack.py and mouserecursion.py.

   6 Grading Criteria

   When grading, we will look for the quality of the program from various aspects. Here are the grading criteria.

   1. Functionality: 60% which is distributed as follows.
   1. User-friendly and well-formatted input and output (10%)
   2. Correctness of computation (30%)
   3. Program satisfies the problem specifications (20%)
   2. Organization and style: 30% which is distributed as follows.
   1. Program follows object-oriented design approach and contains at least classes for Stack, Maze, Mouse, and a separate test program (e.g., testmouse.py) (10%)
   2. Variables and functions have descriptive names following Python convention (5%), program contains sufficient amount of docstrings explaining the functionality of its major parts and comments explaining specific actions that blocks of code are performing, each code file has comments on the top including name, date and file description (5%)
   3. Code is structured, clean, organized and efficient. Each Python code file that doesn't include the main() function contains description of only one class (10%). To earn full grade in this category, avoid leaving commented-out legacy code in your submission.
   3. Extraordinary elements, creativity and innovation: 10%

      This includes anything beyond the provided specification that makes your program stand out.
